When it comes to building a house, one of the most critical decisions you'll face is choosing the right type of house framing. It provides the structural skeleton upon which the entire house rests, influencing its durability, strength, and overall cost. With various framing options available today, each with its advantages and disadvantages, it's essential to understand the differences to make an informed decision that best suits your needs and preferences. In this comprehensive guide, we'll explore the most common types of house framing and help you determine which option works best for you.
Wood Framing:
In the United States, the most common types of house framing use wood, and there are several popular types of wood frames:
- Platform Framing (Western Framing or Stick Framing): Each floor of the house is framed separately with studs or support posts running from the bottom of one floor to the top of the same floor. Therefore, platform framing requires shorter and less expensive lengths of lumber, making construction easier. Hence, platform framing has become the most common type of wood framing.
- Balloon Framing: Studs extend from the foundation to where the roof of the house begins, using longer and more expensive lengths of lumber. Because it’s tougher and more expensive to get ahold of long studs now, balloon framing is less common than it used to be. In addition, studs extending almost the full height of a house allow fire to easily travel up the house.
- Timber Framing: Large support posts and beams are joined together using mortise and tenon joints and secured with wooden pegs. Although timber framing is not as common anymore, requires a lot of skill, and is expensive, you can still construct a house with timber framing today.
- Post and Beam Framing: Post and beam framing has one major difference from timber framing, which is that metal plates are used for joints instead of mortise and tenon joints.
Pros:
- Cost-Effective: Wood is readily available and generally more affordable than other framing materials.
- Easy to Work With and Versatile: Wood is lightweight and easy to cut, making it easier for builders to handle and modify on-site. Therefore, wood framing allows for flexible architectural designs and modifications.
Cons:
- Vulnerable to Pests and Moisture: Wood is susceptible to fungus, rot, and termite damage if not adequately protected.
- Fire Risk: Wood framing is more prone to fire than other materials like concrete and steel.
- Warping: Over the years, a wood structure can warp due to temperature changes and humidity.
Concrete Block Framing:
Concrete block framing, also known as concrete masonry unit (CMU) framing, involves using concrete blocks to create the walls and sometimes the structural elements of the house.
Pros:
- Termite Resistance: Concrete is also naturally termite resistant, so you don’t have to worry about pest damage with your house’s frame!
- Fire Resistance: Although wood will still most likely be used in a house with concrete block framing, concrete is naturally fire resistant. Thus, it can keep the whole structure more fire resistant.
- Strength: Even though your house should be built to meet minimum building codes, concrete will often be stronger than required. The strength of concrete is why concrete block framing is often used in places like Florida, which have extreme weather conditions.
Cons:
- Limited Design Options: Concrete block construction may limit architectural design choices.
- Environmental Impact: Whatever material you’ll use for framing your house, there will be an environmental impact. However, concrete’s environmental impact is something you should really consider since it has to be made under very high pressure and temperature conditions. There will be high transportation costs too because of its weight.
- Higher Cost: Concrete blocks are more expensive than wood, so it will cost more to frame your house with concrete blocks than wood.

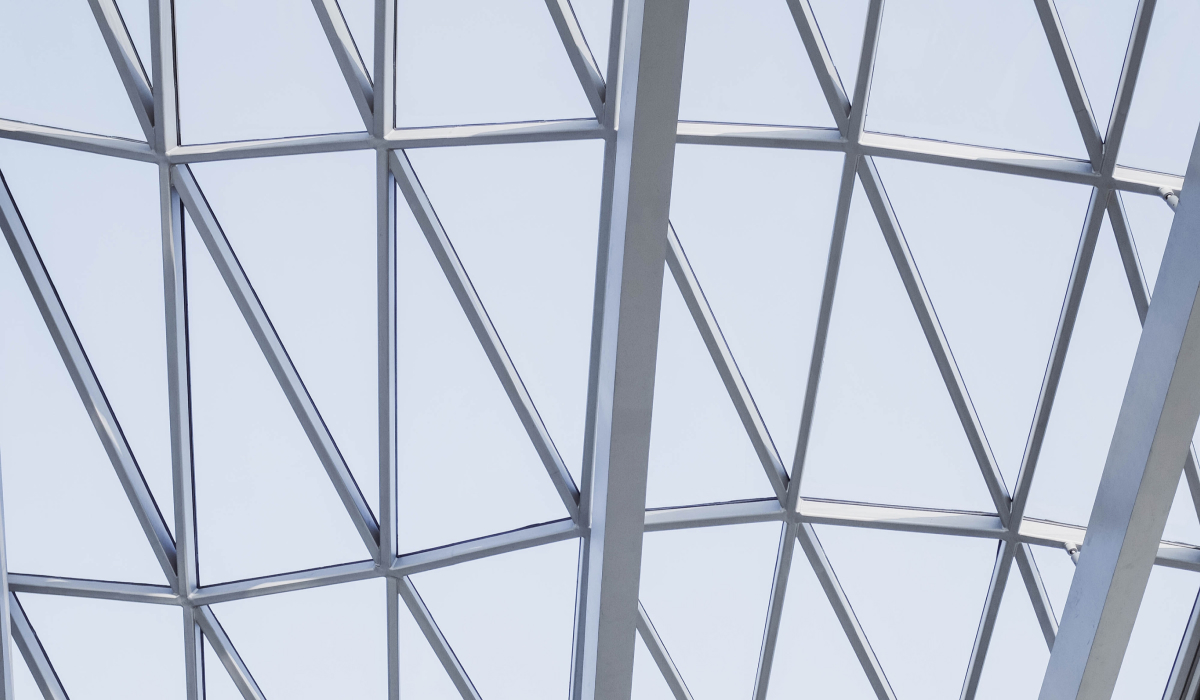

Steel Framing:
Steel framing gained popularity in commercial construction and has made its way into residential projects as well. Steel framing involves using steel studs and beams to construct the structural elements of the house.
Pros:
- Termite-Proof: Unlike wood, steel is not susceptible to termite damage.
- Fire-Resistant: Steel framing is non-combustible and provides better fire protection compared to wood.
- Strength: As it’s used in large commercial construction, steel is stronger than wood, making it ideal for areas prone to high winds or seismic activity.
Cons:
- Little Room for Mistakes: The measurements of steel studs and beams need to be calculated in advance. If a mistake is made, the material will need to be sent back to the workshop. You can’t just adjust the material on-site like wood unless the necessary tools are there.
- Finding Builders: Not many homebuilders are familiar with steel construction, so it can possibly be difficult to find a homebuilder to work with.
- Higher Cost and Environmental Impact: Just like with concrete, there is a higher cost associated with steel when compared with wood because of its production. In addition, steel is more labor intensive than wood. Also, the product of steel does leave a negative environmental impact.
Selecting the right type of house framing depends on various factors, including your budget, location, architectural preferences, and environmental considerations. Traditional wood framing remains a popular choice due to its cost-effectiveness and versatility. However, concrete and steel framing offer strength and durability, making it suitable for areas with specific environmental challenges. Ultimately, consulting with experienced builders or architects can help you make an informed decision based on your unique needs and priorities. By understanding the advantages and disadvantages of each type of house framing, you can build a house that not only meets your needs but also stands the test of time.
